OEM List
- 45470-39125
- 45470-39145
- 45470-39165

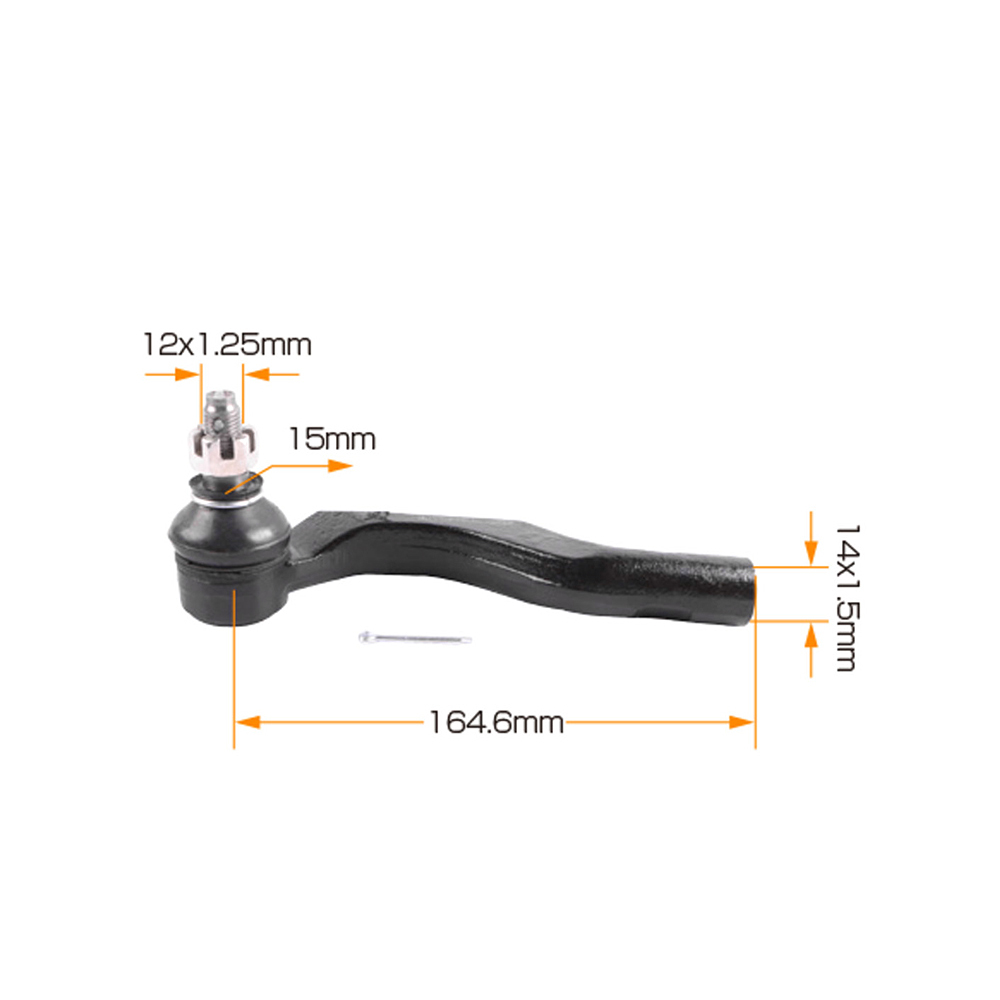

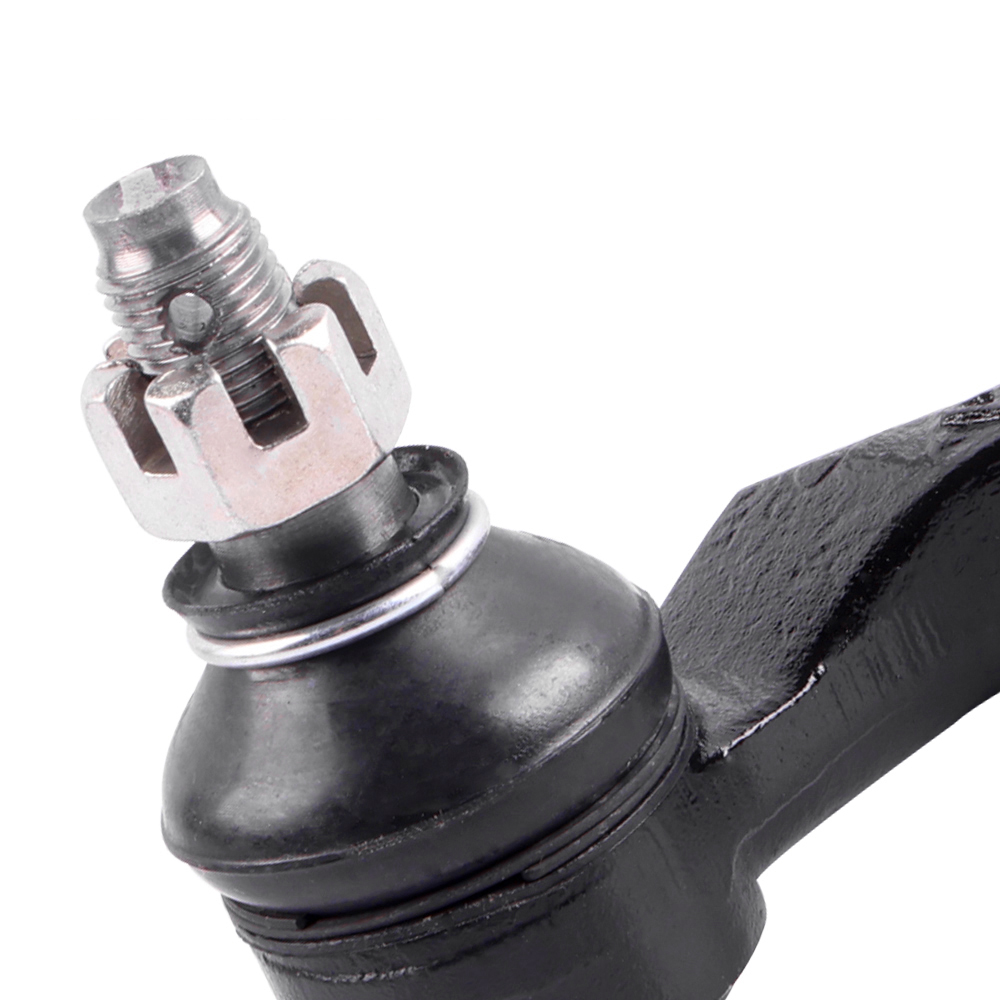

TOMOI tie rod ends are manufactured using modern non-disassemblable technology. Ball joint parts of the ends are made of Cr40 alloy steel with hardening. Mirror processing technology ensures the surface roughness of the ball pin is no more than 0.4 microns, which significantly increases the service life of the joint. The design and processing technology of the ball joint guarantee that even under high angular loads, the ball joint will not jump out of the standard seat.
TOMOI is a global brand of spare parts, components and consumables for cars. The main specialization of the brand: resource parts for post-warranty service of Asian and European cars. The company’s strategy is to offer consumers the best ratio of reliability and price of spare parts.
LEXUS
GS300
| Chassis No. | Year | Configuration |
|---|---|---|
| JZS147 | 1993.01-1997.08 | 3.0L Patrol 2JZGE EFI (212 hp / 156 kW) Rear - wheel drive. LHD |
| JZS147 | 1993.03-1997.08 | 3.0L Patrol 2JZGE EFI (212 hp / 156 kW) Rear - wheel drive. LHD |
TOYOTA
ALTEZZA GITA
| Chassis No. | Year | Configuration |
|---|---|---|
| GXE15W | 2001.06-2005.07 | 2.0L Patrol 1GFE EFI (160 hp / 118 kW) Four - wheel drive (4WD). RHD |
| JCE15W | 2001.06-2005.07 | 3.0L Patrol 2JZGE EFI (220 hp / 162 kW) Four - wheel drive (4WD). RHD |
ARISTO
| Chassis No. | Year | Configuration |
|---|---|---|
| JZS147 | 1991.10-1997.08 | 3.0L Patrol 2JZGE EFI (230 hp / 169 kW) Rear - wheel drive. RHD |
| JZS147 | 1991.10-1997.08 | 3.0L Patrol 2JZGTE EFI (280 hp / 206 kW) Rear - wheel drive. RHD |
| UZS143 | 1992.10-1997.08 | 4.0L Patrol 1UZFE EFI (260 hp / 191 kW) Four - wheel drive (4WD). RHD |
BREVIS
| Chassis No. | Year | Configuration |
|---|---|---|
| JCG15 | 2001.10-2007.06 | 2.5L Patrol 1JZFSE D-4 (200 hp / 147 kW) Four - wheel drive (4WD). RHD |
CHASER
| Chassis No. | Year | Configuration |
|---|---|---|
| JZX93 | 1992.10-1996.09 | 2.5L Patrol 1JZGE EFI (220 hp / 162 kW) Four - wheel drive (4WD). RHD |
| JZX105 | 1996.09-2001.06 | 2.5L Patrol 1JZGE EFI (200 hp / 147 kW) Four - wheel drive (4WD). RHD |
| GX105 | 1998.08-2001.06 | 2.0L Patrol 1GFE EFI (160 hp / 118 kW) Four - wheel drive (4WD). RHD |
CRESTA
| Chassis No. | Year | Configuration |
|---|---|---|
| JZX93 | 1992.10-1996.09 | 2.5L Patrol 1JZGE EFI (200 hp / 147 kW) Four - wheel drive (4WD). RHD |
| JZX105 | 1996.09-2001.06 | 2.5L Patrol 1JZGE EFI (200 hp / 147 kW) Four - wheel drive (4WD). RHD |
| GX105 | 1998.08-2001.06 | 2.0L Patrol 1GFE EFI (160 hp / 118 kW) Four - wheel drive (4WD). RHD |
CROWN
| Chassis No. | Year | Configuration |
|---|---|---|
| JZS155 | 1995.08-1999.09 | 3.0L Patrol 2JZGE EFI (220 hp / 162 kW) Rear - wheel drive. RHD |
| JZS153 | 1995.12-1999.09 | 2.5L Patrol 1JZGE EFI (180 hp / 132 kW) Four - wheel drive (4WD). RHD |
| JZS155 | 1995.12-1999.09 | 3.0L Patrol 2JZGE EFI (220 hp / 162 kW) Rear - wheel drive. RHD |
| JZS153 | 1995.12-2001.08 | 2.5L Patrol 1JZGE EFI (200 hp / 147 kW) Four - wheel drive (4WD). RHD |
| JZS157 | 1998.08-1999.09 | 3.0L Patrol 2JZGE EFI (220 hp / 162 kW) Four - wheel drive (4WD). RHD |
| JZS173 | 1999.09-2003.12 | 2.5L Patrol 1JZGE EFI (196 hp / 144 kW) Four - wheel drive (4WD). RHD |
| JZS179 | 1999.09-2003.12 | 3.0L Patrol 2JZGE EFI (220 hp / 162 kW) Four - wheel drive (4WD). RHD |
| JZS173W | 1999.12-2007.06 | 2.5L Patrol 1JZGE EFI (196 hp / 144 kW) Four - wheel drive (4WD). RHD |
CROWN MAJESTA
| Chassis No. | Year | Configuration |
|---|---|---|
| JZS149 | 1991.10-1995.08 | 3.0L Patrol 2JZGE EFI (230 hp / 169 kW) Rear - wheel drive. RHD |
| UZS141 | 1991.10-1995.08 | 4.0L Patrol 1UZFE EFI (260 hp / 191 kW) Rear - wheel drive. RHD |
| JZS147 | 1992.10-1995.08 | 3.0L Patrol 2JZGE EFI (230 hp / 169 kW) Rear - wheel drive. RHD |
| UZS145 | 1992.10-1995.08 | 4.0L Patrol 1UZFE EFI (260 hp / 191 kW) Four - wheel drive (4WD). RHD |
| UZS143 | 1992.10-1995.08 | 4.0L Patrol 1UZFE EFI (260 hp / 191 kW) Four - wheel drive (4WD). RHD |
| UZS147 | 1993.08-1995.08 | 4.0L Patrol 1UZFE EFI (260 hp / 191 kW) Rear - wheel drive. RHD |
| UZS157 | 1995.08-1999.09 | 4.0L Patrol 1UZFE EFI (265 hp / 195 kW) Rear - wheel drive. RHD |
| UZS151 | 1995.08-1999.09 | 4.0L Patrol 1UZFE EFI (280 hp / 206 kW) Rear - wheel drive. RHD |
| JZS155 | 1995.09-1999.09 | 3.0L Patrol 2JZGE EFI (220 hp / 162 kW) Rear - wheel drive. RHD |
| UZS155 | 1995.11-1999.09 | 4.0L Patrol 1UZFE EFI (265 hp / 195 kW) Four - wheel drive (4WD). RHD |
| UZS173 | 1999.09-2004.06 | 4.0L Patrol 1UZFE EFI (280 hp / 206 kW) Four - wheel drive (4WD). RHD |
MARK II
| Chassis No. | Year | Configuration |
|---|---|---|
| JZX93 | 1993.10-1996.09 | 2.5L Patrol 1JZGE EFI (180 hp / 132 kW) Four - wheel drive (4WD). RHD |
| JZX105 | 1996.09-2000.10 | 2.5L Patrol 1JZGE EFI (196 hp / 144 kW) Four - wheel drive (4WD). RHD |
| GX105 | 1998.08-2000.10 | 2.0L Patrol 1GFE EFI (160 hp / 118 kW) Four - wheel drive (4WD). RHD |
| GX115 | 2000.10-2004.11 | 2.0L Patrol 1GFE EFI (160 hp / 118 kW) Four - wheel drive (4WD). RHD |
| JZX115 | 2000.10-2004.11 | 2.5L Patrol 1JZGE EFI (196 hp / 144 kW) Four - wheel drive (4WD). RHD |
MARK II BLIT
| Chassis No. | Year | Configuration |
|---|---|---|
| GX115W | 2002.01-2007.06 | 2.0L Patrol 1GFE EFI (160 hp / 118 kW) Four - wheel drive (4WD). RHD |
| JZX115W | 2002.01-2007.06 | 2.5L Patrol 1JZGE EFI (196 hp / 144 kW) Four - wheel drive (4WD). RHD |
PROGRES
| Chassis No. | Year | Configuration |
|---|---|---|
| JCG15 | 1999.12-2001.04 | 2.5L Patrol 1JZGE EFI (200 hp / 147 kW) Four - wheel drive (4WD). RHD |
| JCG15 | 2001.04-2007.06 | 2.5L Patrol 1JZFSE D-4 (200 hp / 147 kW) Four - wheel drive (4WD). RHD |
VEROSSA
| Chassis No. | Year | Configuration |
|---|---|---|
| GX115 | 2001.06-2004.04 | 2.0L Patrol 1GFE EFI (160 hp / 118 kW) Four - wheel drive (4WD). RHD |
