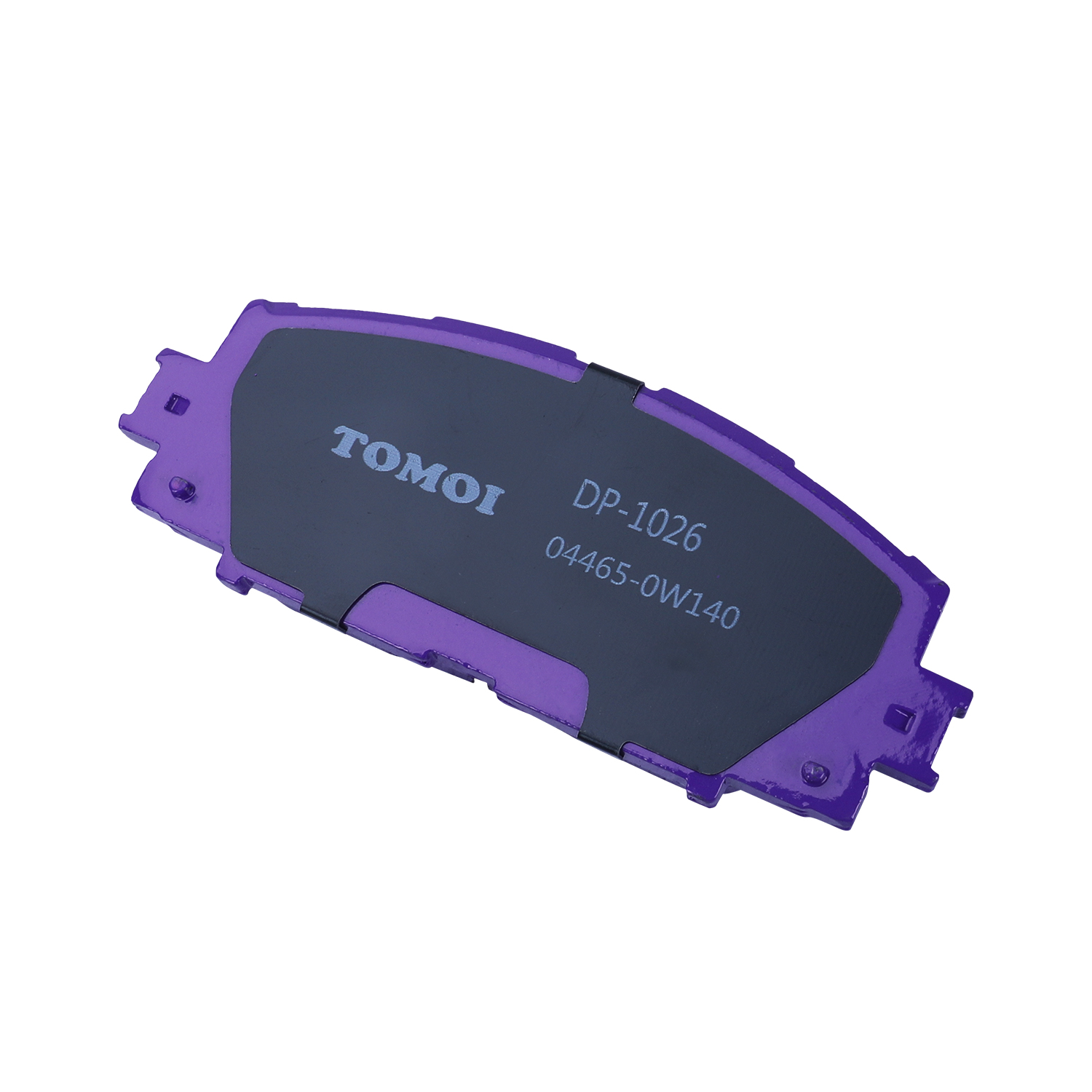

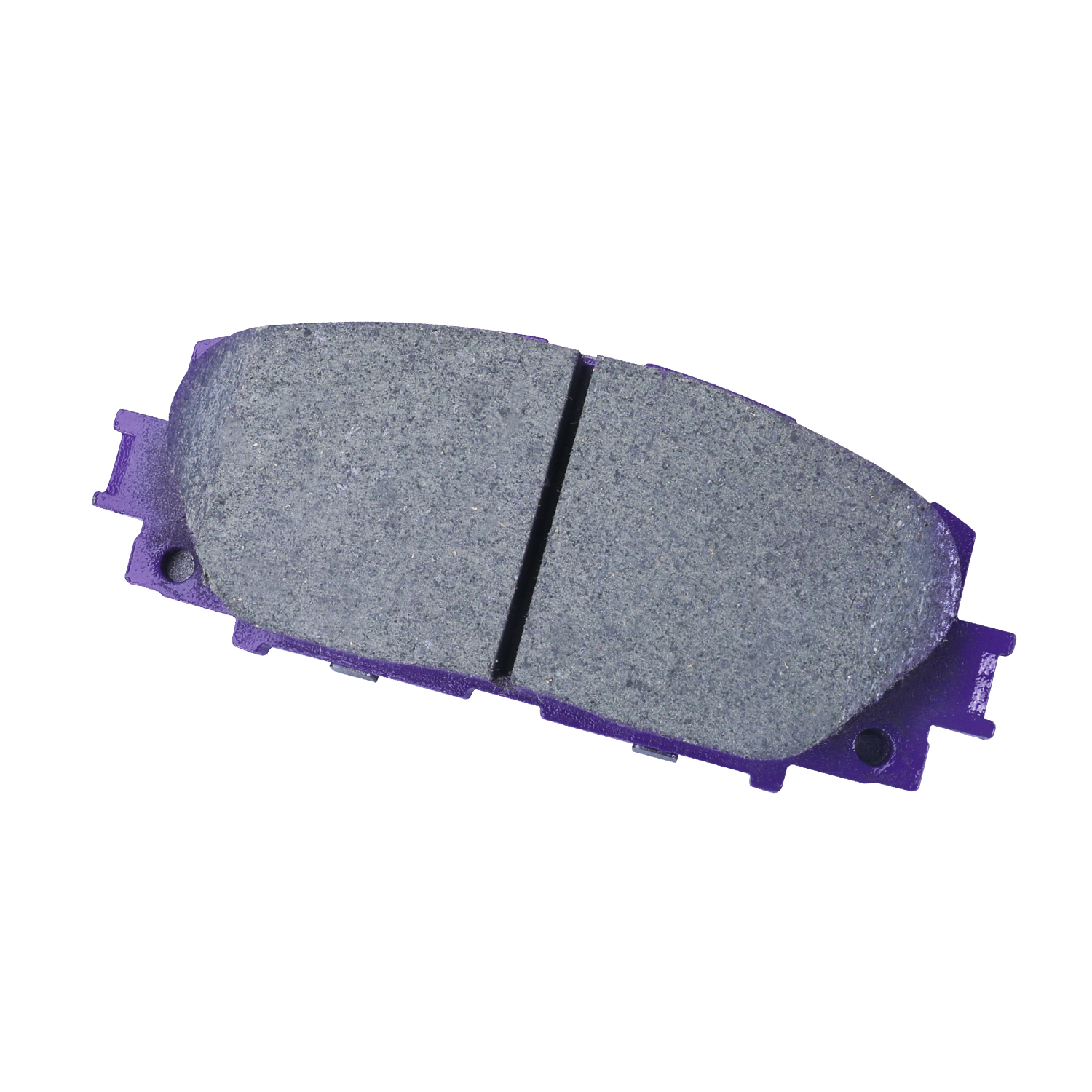

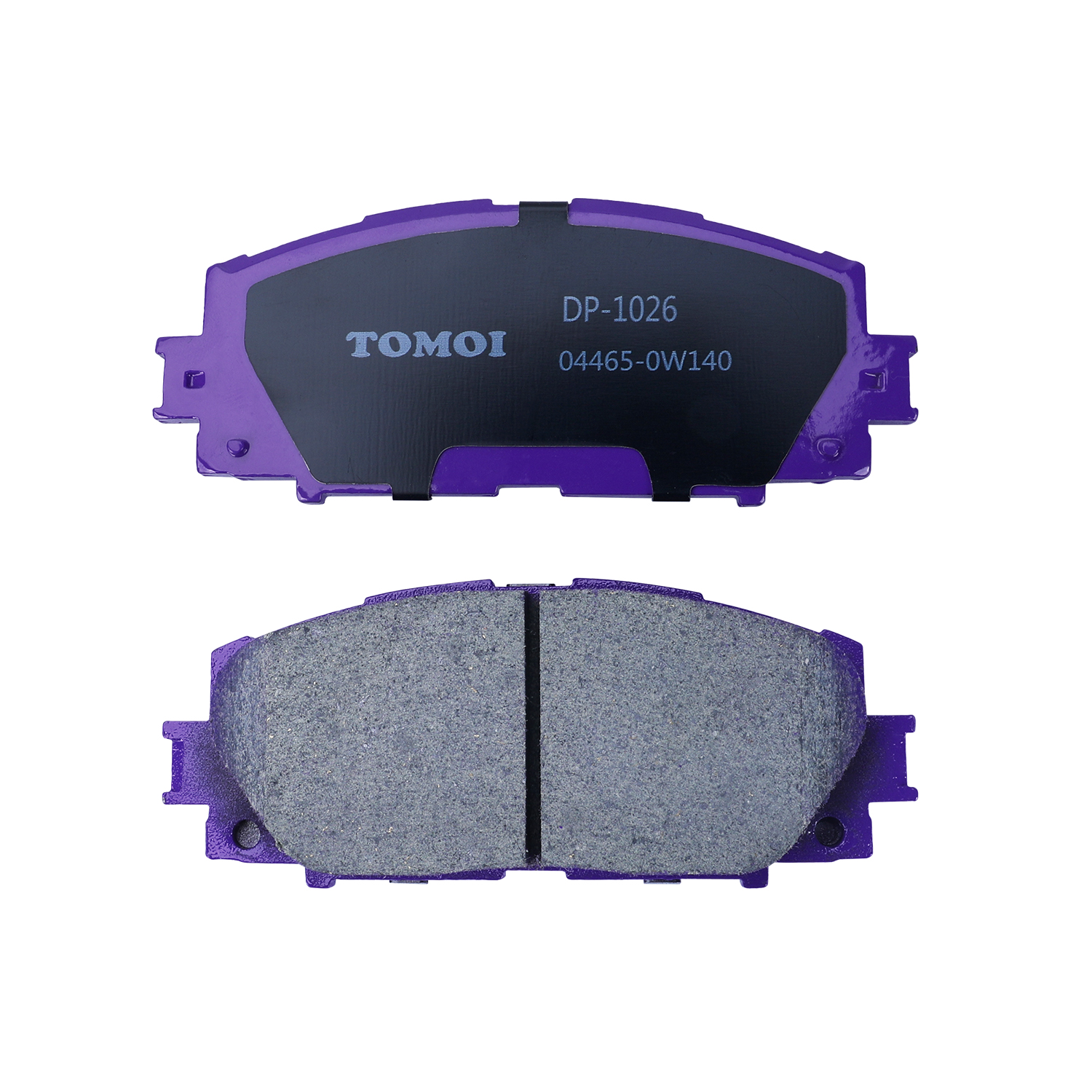

BRAKE PADS DP-1026
MASUMA No.
MS-1508
FMSI No.
D1184-8301
NIBK No.
PN1508
BREMBO No.
P 83 106
TEXTAR No.
2445101
TRW No.
GDB4173
TOMOI No.
DP-1026
NIBK No.
PN1508
BREMBO No.
P83106
TEXTAR No.
2445101
TRW No.
GDB4173
TOMOI No.
DP-1026
High Security
Boost Motivation
In-situ Installation
Stable And Durable
OEM List
- 04465-B1350
- 04465-0W141
- 04465-47070
- SA35001
- AY040-TY078
- 04465-0W140
- 04465-12640
- 04465-12660
- 04465-47060
- 04465-47080
- 04465-52180
- 04465-52200
- 04465-52260
- 04465-52320
The friction material of TOMOI disc pads is the result of 10 years of research into different compositions and component ratios. As a result, the company managed to achieve optimal efficiency, thermal stability in different operating modes, low noise levels and moderate dust formation.
TOMOI is a global brand of spare parts, components and consumables for cars. The main specialization of the brand: resource parts for post-warranty service of Asian and European cars. The company’s strategy is to offer consumers the best ratio of reliability and price of spare parts.
DAIHATSU
BOON LUMINAS
| Chassis No. | Year | Configuration |
|---|---|---|
| M502G | 2008.12-2012.03 | 1.5L Patrol 3SZ-VE EFI (105 hp / 77 kW) Front - wheel drive (2WD). RHD |
LEXUS
CT200H
| Chassis No. | Year | Configuration |
|---|---|---|
| ZWA10L | 2010.12-2011.05 | 1.8L Patrol 2ZRFXE EFI (136 hp / 100 kW) Front - wheel drive (2WD). LHD |
| ZWA10L | 2010.12-2011.05 | 1.8L Patrol 2ZRFXE EFI (136 hp / 100 kW) Front - wheel drive (2WD). LHD |
| ZWA10L | 2010.12-2011.05 | 1.8L Patrol 5ZRFXE EFI (99 hp / 73 kW) Front - wheel drive (2WD). LHD |
| ZWA10L | 2010.12-2013.12 | 1.8L Patrol 2ZRFXE EFI (136 hp / 100 kW) Front - wheel drive (2WD). LHD |
| ZWA10L | 2010.12-2013.12 | 1.8L Patrol 5ZRFXE EFI (99 hp / 73 kW) Front - wheel drive (2WD). LHD |
| ZWA10L | 2011.05-2012.12 | 1.8L Patrol 2ZRFXE EFI (136 hp / 100 kW) Front - wheel drive (2WD). LHD |
| ZWA10L | 2011.05-2012.12 | 1.8L Patrol 5ZRFXE EFI (99 hp / 73 kW) Front - wheel drive (2WD). LHD |
| ZWA10L | 2011.05-2013.12 | 1.8L Patrol 2ZRFXE EFI (136 hp / 100 kW) Front - wheel drive (2WD). LHD |
LIFAN
X50
| Chassis No. | Year | Configuration |
|---|---|---|
| 1.5L CVT. LF476Q2. HATCHBACK | 2015.06-2022.04 | 1.5L Patrol LF479Q2 MPI (103 hp / 76 kW) Rear - wheel drive. LHD |
| 1.5L MT. LF476Q2. HATCHBACK | 2015.06-2022.04 | 1.5L Patrol LF479Q2 MPI (103 hp / 76 kW) Rear - wheel drive. LHD |
TOYOTA
ALLION
| Chassis No. | Year | Configuration |
|---|---|---|
| NZT260 | 2007.05-... | 1.5L Patrol 1NZFE EFI (110 hp / 81 kW) Front - wheel drive (2WD). RHD |
AQUA
| Chassis No. | Year | Configuration |
|---|---|---|
| NHP10 | 2011.12-2021.06 | 1.5L Patrol 1NZFXE EFI (74 hp / 54 kW) Front - wheel drive (2WD). RHD |
| NHP10H | 2017.07-2021.06 | 1.5L Patrol 1NZFXE EFI (73 hp / 54 kW) Front - wheel drive (2WD). RHD |
BELTA
| Chassis No. | Year | Configuration |
|---|---|---|
| KSP92 | 2005.11-2012.06 | 1.0L Patrol 1KR-FE EFI (71 hp / 52 kW) Front - wheel drive (2WD). RHD |
| NCP96 | 2005.11-2012.06 | 1.3L Patrol 2NZFE EFI (87 hp / 64 kW) Four - wheel drive (4WD). RHD |
| SCP92 | 2005.11-2012.06 | 1.3L Patrol 2SZFE EFI (87 hp / 64 kW) Front - wheel drive (2WD). RHD |
COROLLA AXIO
| Chassis No. | Year | Configuration |
|---|---|---|
| NZE141 | 2006.09-2008.10 | 1.5L Patrol 1NZFE EFI (110 hp / 81 kW) Front - wheel drive (2WD). RHD |
| NZE141 | 2008.10-2012.04 | 1.5L Patrol 1NZFE EFI (110 hp / 81 kW) Front - wheel drive (2WD). RHD |
| NRE160 | 2012.04-2017.10 | 1.3L Patrol 1NRFE EFI (95 hp / 70 kW) Front - wheel drive (2WD). RHD |
| NZE164 | 2012.04-2017.10 | 1.5L Patrol 1NZFE EFI (103 hp / 76 kW) Four - wheel drive (4WD). RHD |
| NZE161 | 2012.04-2017.10 | 1.5L Patrol 1NZFE EFI (109 hp / 80 kW) Front - wheel drive (2WD). RHD |
| NKE165 | 2013.07-... | 1.5L Patrol 1NZFXE EFI (74 hp / 54 kW) Front - wheel drive (2WD). RHD |
| NRE161 | 2015.03-2017.10 | 1.5L Patrol 2NRFKE EFI (109 hp / 80 kW) Front - wheel drive (2WD). RHD |
| NZE164 | 2017.10-... | 1.5L Patrol 1NZFE EFI (103 hp / 76 kW) Four - wheel drive (4WD). RHD |
| NZE161 | 2017.10-... | 1.5L Patrol 1NZFE EFI (109 hp / 80 kW) Front - wheel drive (2WD). RHD |
| NRE161 | 2017.10-... | 1.5L Patrol 2NRFKE EFI (109 hp / 80 kW) Front - wheel drive (2WD). RHD |
| NRE160 | 2017.10-2019.08 | 1.3L Patrol 1NRFE EFI (95 hp / 70 kW) Front - wheel drive (2WD). RHD |
COROLLA FIELDER
| Chassis No. | Year | Configuration |
|---|---|---|
| NKE165G | 2013.07-... | 1.5L Patrol 1NZFXE EFI (74 hp / 54 kW) Front - wheel drive (2WD). RHD |
PASSO SETTE
| Chassis No. | Year | Configuration |
|---|---|---|
| M502E | 2008.12-2012.03 | 1.5L Patrol 3SZVE EFI (109 hp / 80 kW) Front - wheel drive (2WD). RHD |
PORTE
| Chassis No. | Year | Configuration |
|---|---|---|
| NSP140 | 2012.07-2015.04 | 1.3L Patrol 1NRFE EFI (95 hp / 70 kW) Front - wheel drive (2WD). RHD |
| NCP141 | 2012.07-2015.04 | 1.5L Patrol 1NZFE EFI (109 hp / 80 kW) Front - wheel drive (2WD). RHD |
| NSP140 | 2015.04-2015.07 | 1.3L Patrol 1NRFE EFI (95 hp / 70 kW) Front - wheel drive (2WD). RHD |
| NCP141 | 2015.04-2015.07 | 1.5L Patrol 1NZFE EFI (109 hp / 80 kW) Front - wheel drive (2WD). RHD |
| NSP141 | 2015.07-2020.12 | 1.5L Patrol 2NRFKE EFI (109 hp / 80 kW) Front - wheel drive (2WD). RHD |
PREMIO
| Chassis No. | Year | Configuration |
|---|---|---|
| NZT260 | 2007.05-... | 1.5L Patrol 1NZFE EFI (110 hp / 81 kW) Front - wheel drive (2WD). RHD |
PRIUS
| Chassis No. | Year | Configuration |
|---|---|---|
| ZVW30L | 2009.04-2009.07 | 1.8L Patrol 2ZRFXE EFI (178 hp / 132 kW) Front - wheel drive (2WD). LHD EUR |
| ZVW30L | 2009.04-2011.05 | 1.8L Patrol 2ZRFXE EFI (178 hp / 132 kW) Front - wheel drive (2WD). LHD EUR |
| ZVW30L | 2009.04-2011.05 | 1.8L Patrol 2ZRFXE EFI (98 hp / 72 kW) Front - wheel drive (2WD). LHD |
| ZVW30 | 2009.04-2011.05 | 1.8L Patrol 2ZRFXE EFI (99 hp / 73 kW) Front - wheel drive (2WD). RHD |
| ZVW30L | 2009.07-2015.11 | 1.8L Patrol 2ZRFXE EFI (178 hp / 132 kW) Front - wheel drive (2WD). LHD EUR |
| ZVW35L | 2009.12-2010.10 | 1.8L Patrol 2ZRFXE EFI (98 hp / 72 kW) Front - wheel drive (2WD). LHD |
| ZVW35L | 2009.12-2010.10 | 1.8L Patrol 2ZRFXE EFI (99 hp / 73 kW) Front - wheel drive (2WD). LHD PLUG-IN HYBRID |
| ZVW30L | 2011.05-2011.12 | 1.8L Patrol 2ZRFXE EFI (178 hp / 132 kW) Front - wheel drive (2WD). LHD EUR |
| ZVW30L | 2011.05-2015.11 | 1.8L Patrol 2ZRFXE EFI (98 hp / 72 kW) Front - wheel drive (2WD). LHD |
| ZVW30 | 2011.05-2015.11 | 1.8L Patrol 2ZRFXE EFI (99 hp / 73 kW) Front - wheel drive (2WD). RHD |
| ZVW35L | 2012.01-2015.06 | 1.8L Patrol 2ZRFXE EFI (99 hp / 73 kW) Front - wheel drive (2WD). LHD |
| ZVW35L | 2012.05-2016.04 | 1.8L Patrol 2ZRFXE EFI (98 hp / 72 kW) Front - wheel drive (2WD). LHD PLUG-IN HYBRID |
| ZVW50L | 2015.11-... | 1.8L Patrol 2ZRFXE EFI (98 hp / 72 kW) Front - wheel drive (2WD). LHD |
| ZVW51 | 2015.11-... | 1.8L Patrol 2ZRFXE EFI (98 hp / 72 kW) Front - wheel drive (2WD). RHD |
| ZVW55 | 2015.11-... | 1.8L Patrol 2ZRFXE EFI (98 hp / 72 kW) Four - wheel drive (4WD). RHD |
| ZVW50 | 2015.11-2018.12 | 1.8L Patrol 2ZRFXE EFI (98 hp / 72 kW) Front - wheel drive (2WD). RHD |
| ZVW50L | 2018.12-... | 1.8L Patrol 2ZRFXE EFI (98 hp / 72 kW) Four - wheel drive (4WD). LHD |
PRIUS PHV
| Chassis No. | Year | Configuration |
|---|---|---|
| ZVW35 | 2009.12-2016.04 | 1.8L Patrol 2ZRFXE EFI (99 hp / 73 kW) Front - wheel drive (2WD). RHD |
| ZVW52 | 2016.09-... | 1.8L Patrol 2ZRFXE EFI (98 hp / 72 kW) Front - wheel drive (2WD). RHD |
PROBOX
| Chassis No. | Year | Configuration |
|---|---|---|
| NSP160V | 2014.09-2021.12 | 1.3L Patrol 1NRFE EFI (95 hp / 70 kW) Front - wheel drive (2WD). RHD |
| NCP160V | 2014.09-2021.12 | 1.5L Patrol 1NZFE EFI (103 hp / 76 kW) Front - wheel drive (2WD). RHD |
| NCP165V | 2014.09-2021.12 | 1.5L Patrol 1NZFE EFI (103 hp / 76 kW) Four - wheel drive (4WD). RHD |
| NHP160V | 2018.12-... | 1.5L Patrol 1NZFXE EFI (75 hp / 55 kW) Front - wheel drive (2WD). RHD |
SPADE
| Chassis No. | Year | Configuration |
|---|---|---|
| NSP140 | 2012.07-2015.04 | 1.3L Patrol 1NRFE EFI (103 hp / 76 kW) Front - wheel drive (2WD). RHD |
| NCP141 | 2012.07-2015.04 | 1.5L Patrol 1NZFE EFI (109 hp / 80 kW) Front - wheel drive (2WD). RHD |
| NSP140 | 2015.04-2015.07 | 1.3L Patrol 1NRFE EFI (103 hp / 76 kW) Front - wheel drive (2WD). RHD |
| NCP141 | 2015.04-2015.07 | 1.5L Patrol 1NZFE EFI (109 hp / 80 kW) Front - wheel drive (2WD). RHD |
| NSP141 | 2015.07-2020.12 | 1.5L Patrol 2NRFKE EFI (109 hp / 80 kW) Front - wheel drive (2WD). RHD |
SUCCEED
| Chassis No. | Year | Configuration |
|---|---|---|
| NCP160V | 2014.09-2020.07 | 1.5L Patrol 1NZFE EFI (103 hp / 76 kW) Front - wheel drive (2WD). RHD |
| NCP165V | 2014.09-2020.07 | 1.5L Patrol 1NZFE EFI (103 hp / 76 kW) Four - wheel drive (4WD). RHD |
| NHP160V | 2018.12-2020.07 | 1.5L Patrol 1NZFXE EFI (75 hp / 55 kW) Front - wheel drive (2WD). RHD |
VITZ
| Chassis No. | Year | Configuration |
|---|---|---|
| KSP90 | 2005.01-2005.05 | 1.0L Patrol 1KR-FE EFI (71 hp / 52 kW) Front - wheel drive (2WD). RHD |
| NCP95 | 2005.01-2005.05 | 1.3L Patrol 2NZFE EFI (87 hp / 64 kW) Four - wheel drive (4WD). RHD |
| SCP90 | 2005.01-2005.05 | 1.3L Patrol 2SZFE EFI (87 hp / 64 kW) Front - wheel drive (2WD). RHD |
| NCP91 | 2005.01-2005.05 | 1.5L Patrol 1NZFE EFI (119 hp / 86 kW) Front - wheel drive (2WD). RHD |
| KSP90 | 2005.05-2010.12 | 1.0L Patrol 1KR-FE EFI (71 hp / 52 kW) Front - wheel drive (2WD). RHD |
| NCP95 | 2005.05-2010.12 | 1.3L Patrol 2NZFE EFI (87 hp / 64 kW) Four - wheel drive (4WD). RHD |
| SCP90 | 2005.05-2010.12 | 1.3L Patrol 2SZFE EFI (87 hp / 64 kW) Front - wheel drive (2WD). RHD |
| NCP91 | 2005.05-2010.12 | 1.5L Patrol 1NZFE EFI (119 hp / 86 kW) Front - wheel drive (2WD). RHD |
| SCP90 | 2007.08-2010.12 | 1.3L Patrol 2SZFE EFI (87 hp / 64 kW) Front - wheel drive (2WD). RHD RS |
| NSP135 | 2010.12-2015.04 | 1.3L Patrol 1NRFE EFI (95 hp / 70 kW) Four - wheel drive (4WD). RHD |
| NSP130 | 2012.05-2014.04 | 1.3L Patrol 1NRFE EFI (95 hp / 70 kW) Front - wheel drive (2WD). RHD |
| KSP130 | 2012.05-2015.04 | 1.0L Patrol 1KR-FE EFI (69 hp / 51 kW) Front - wheel drive (2WD). RHD |
| NSP130 | 2014.04-2015.04 | 1.3L Patrol 1NRFKE EFI (99 hp / 73 kW) Front - wheel drive (2WD). RHD |
| KSP130 | 2015.04-2020.01 | 1.0L Patrol 1KR-FE EFI (69 hp / 51 kW) Front - wheel drive (2WD). RHD |
| NSP135 | 2015.04-2020.01 | 1.3L Patrol 1NRFE EFI (95 hp / 70 kW) Four - wheel drive (4WD). RHD |
| NSP130 | 2015.04-2020.01 | 1.3L Patrol 1NRFKE EFI (99 hp / 73 kW) Front - wheel drive (2WD). RHD |
| NHP130 | 2017.01-2020.01 | 1.5L Patrol 1NZFXE EFI (75 hp / 55 kW) Front - wheel drive (2WD). RHD |
YARIS
| Chassis No. | Year | Configuration |
|---|---|---|
| KSP90L | 2005.08-2009.10 | 1.0L Patrol 1KR-FE EFI (69 hp / 51 kW) Front - wheel drive (2WD). LHD JPP |
| KSP90L | 2005.08-2009.10 | 1.0L Patrol 1KR-FE EFI (71 hp / 52 kW) Front - wheel drive (2WD). LHD JPP |
| KSP130L | 2011.08-2012.08 | 1.0L Patrol 1KR-FE EFI (69 hp / 51 kW) Front - wheel drive (2WD). LHD JPP |
