OEM List
- 51320-SAA-003
- 51320-SAD-P01

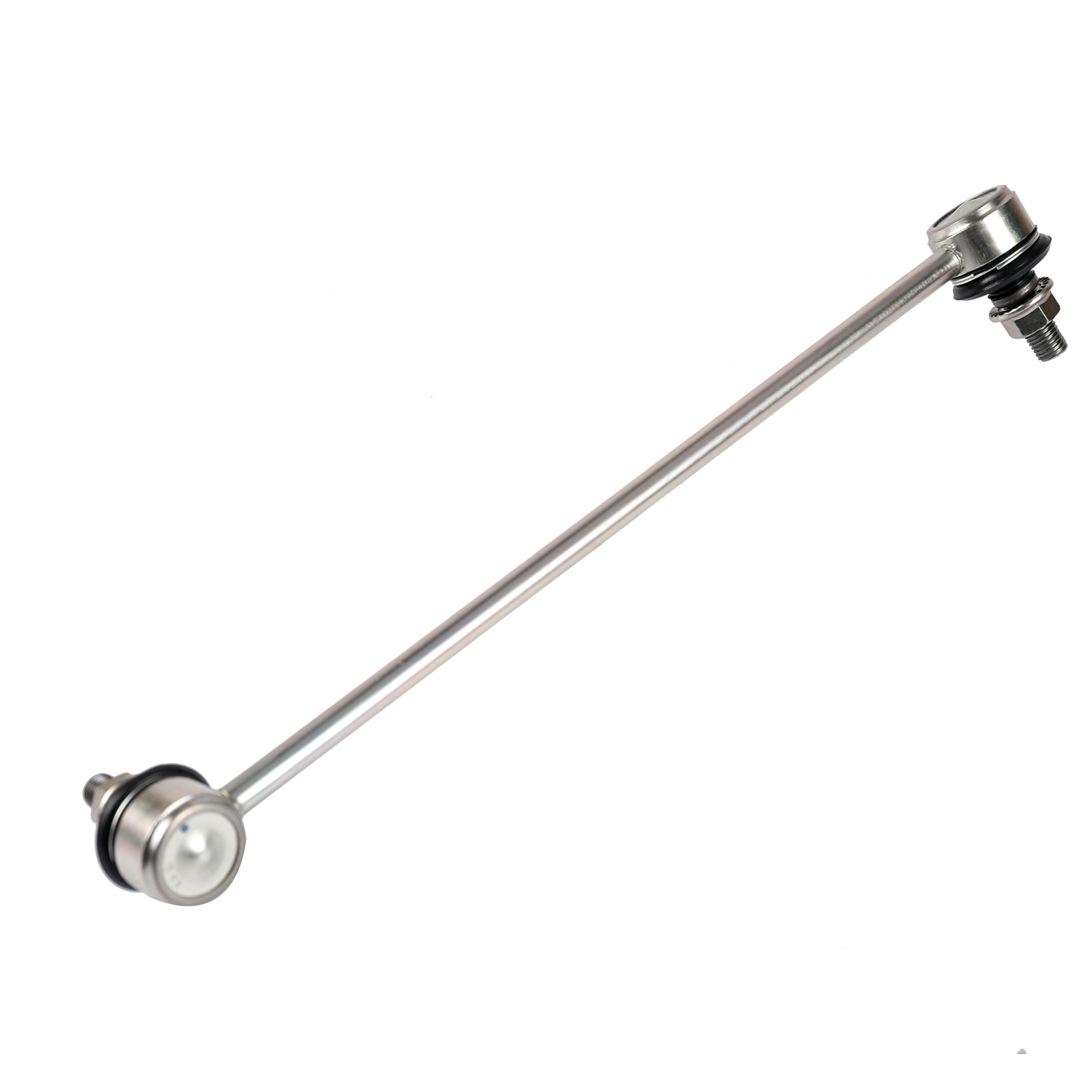

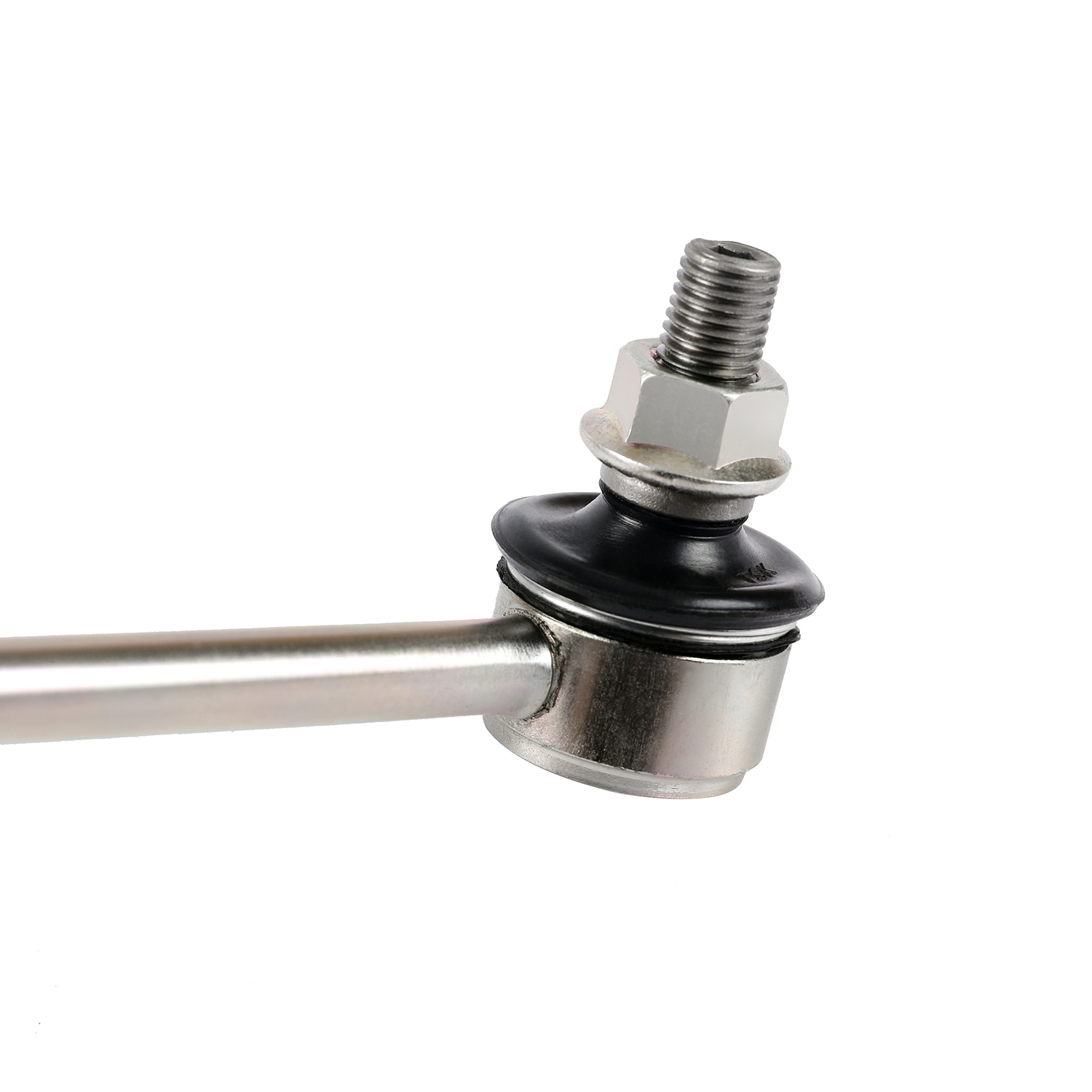

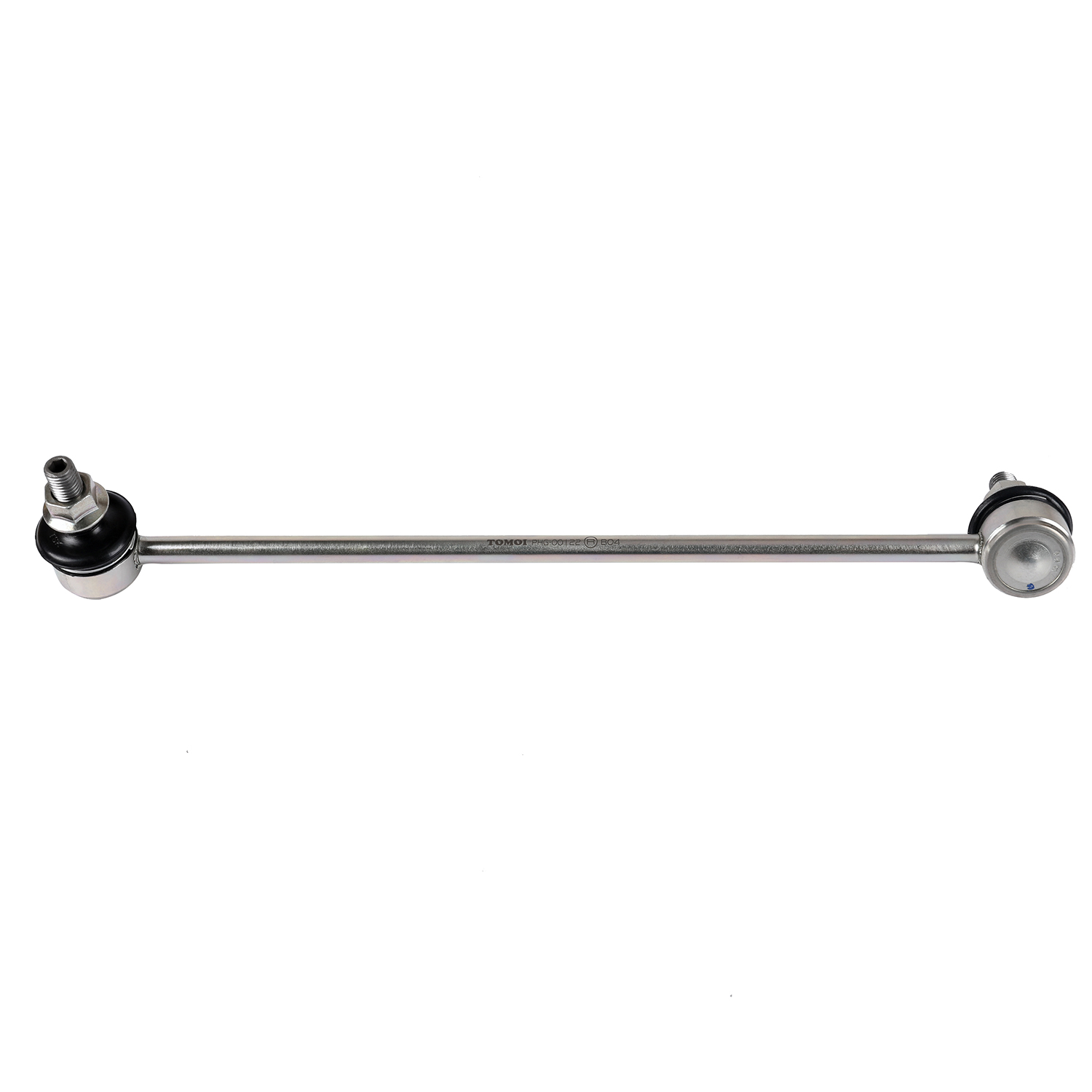

TOMOI stabilizer struts (links) are distinguished by the high strength of the ball joint. This is due to a special pressing method during manufacturing – with the filling of the ball joint with polyoxymethylene polymer (POM 500P). A special mirror processing technology ensures the roughness of the ball pin surface of no more than 0.4 microns, which significantly increases the service life of the joint.
TOMOI is a global brand of spare parts, components and consumables for cars. The main specialization of the brand: resource parts for post-warranty service of Asian and European cars. The company’s strategy is to offer consumers the best ratio of reliability and price of spare parts.
HONDA
FIT
| Chassis No. | Year | Configuration |
|---|---|---|
| GD1 | 2001.06-2003.10 | LA-GD1 1.3L Patrol L13A PGM-FI (86 hp / 63 kW) Front - wheel drive (2WD). RHD |
| GD2 | 2001.06-2003.10 | LA-GD2 1.3L Patrol L13A PGM-FI (86 hp / 63 kW) Four - wheel drive (4WD). RHD |
| GD3 | 2002.09-2003.10 | LA-GD3 1.5L Patrol L15A PGM-FI (110 hp / 81 kW) Front - wheel drive (2WD). RHD |
| GD4 | 2002.09-2003.10 | LA-GD4 1.5L Patrol L15A PGM-FI (110 hp / 81 kW) Four - wheel drive (4WD). RHD |
| GD1 | 2003.10-2004.01 | UA-GD1 1.3L Patrol L13A PGM-FI Front - wheel drive (2WD). RHD |
| GD2 | 2003.10-2004.01 | UA-GD2 1.3L Patrol L13A PGM-FI Four - wheel drive (4WD). RHD |
| GD4 | 2003.10-2004.01 | UA-GD4 1.5L Patrol L15A PGM-FI Four - wheel drive (4WD). RHD |
| GD4 | 2004.01-2005.12 | CBA-GD4 1.5L Patrol L15A PGM-FI Four - wheel drive (4WD). RHD |
| GD2 | 2004.01-2007.10 | DBA-GD2 1.3L Patrol L13A PGM-FI Four - wheel drive (4WD). RHD |
| GD4 | 2005.12-2007.10 | DBA-GD4 1.5L Patrol L15A PGM-FI Four - wheel drive (4WD). RHD |
JAZZ
| Chassis No. | Year | Configuration |
|---|---|---|
| 1200cc. KG. 1.2S-W. L12A1. | 2002.01-2002.12 | 1.2L Patrol L12A1 PGM-FI (78 hp / 57 kW) Front - wheel drive (2WD). LHD |
| 1200cc. KR. 1.2S-W. L12A1. | 2002.01-2002.12 | 1.2L Patrol L12A1 PGM-FI (78 hp / 57 kW) Front - wheel drive (2WD). LHD |
| 1200cc. KR. 1.2ES. L12A1. | 2002.01-2002.12 | 1.2L Patrol L12A1 PGM-FI (78 hp / 57 kW) Front - wheel drive (2WD). LHD |
| 1200cc. KR. 1.2LS. L12A1. | 2002.01-2002.12 | 1.2L Patrol L12A1 PGM-FI (78 hp / 57 kW) Front - wheel drive (2WD). LHD |
| 1200cc. KR. 1.2S. L12A1. | 2002.01-2002.12 | 1.2L Patrol L12A1 PGM-FI (78 hp / 57 kW) Front - wheel drive (2WD). LHD |
| 1200cc. KG. 1.2S. L12A1. | 2002.01-2002.12 | 1.2L Patrol L12A1 PGM-FI (78 hp / 57 kW) Front - wheel drive (2WD). LHD |
| 1300cc. KG. 1.4ES. L13A1. | 2002.01-2002.12 | 1.3L Patrol L13A1 PGM-FI (83 hp / 61 kW) Front - wheel drive (2WD). LHD |
| 1300cc. KR. 1.4LS. L13A1. | 2002.01-2002.12 | 1.3L Patrol L13A1 PGM-FI (83 hp / 61 kW) Front - wheel drive (2WD). LHD |
| 1300cc. KR. 1.4ES. L13A1. | 2002.01-2002.12 | 1.3L Patrol L13A1 PGM-FI (83 hp / 61 kW) Front - wheel drive (2WD). LHD |
| 1300cc. KG. 1.4LS. L13A1. | 2002.01-2002.12 | 1.3L Patrol L13A1 PGM-FI (83 hp / 61 kW) Front - wheel drive (2WD). LHD |
| 1300cc. KG. 1.4S. L13A1. | 2002.01-2002.12 | 1.3L Patrol L13A1 PGM-FI (83 hp / 61 kW) Front - wheel drive (2WD). LHD |
| 1300cc. KG. 1.4S-W. L13A1. | 2002.01-2002.12 | 1.3L Patrol L13A1 PGM-FI (83 hp / 61 kW) Front - wheel drive (2WD). LHD |
| 1200cc. KR. 1.2S-W. L12A1. | 2003.01-2003.12 | 1.2L Patrol L12A1 PGM-FI (78 hp / 57 kW) Front - wheel drive (2WD). LHD |
| 1200cc. KG. 1.2S. L12A1. | 2003.01-2003.12 | 1.2L Patrol L12A1 PGM-FI (78 hp / 57 kW) Front - wheel drive (2WD). LHD |
| 1200cc. KG. 1.2S-W. L12A1. | 2003.01-2003.12 | 1.2L Patrol L12A1 PGM-FI (78 hp / 57 kW) Front - wheel drive (2WD). LHD |
| 1200cc. KR. 1.2S. L12A1. | 2003.01-2003.12 | 1.2L Patrol L12A1 PGM-FI (78 hp / 57 kW) Front - wheel drive (2WD). LHD |
| 1200cc. KR. 1.2ES. L12A1. | 2003.01-2003.12 | 1.2L Patrol L12A1 PGM-FI (78 hp / 57 kW) Front - wheel drive (2WD). LHD |
| 1200cc. KR. 1.2LS. L12A1. | 2003.01-2003.12 | 1.2L Patrol L12A1 PGM-FI (78 hp / 57 kW) Front - wheel drive (2WD). LHD |
| 1300cc. KG. 1.4ES. L13A1. | 2003.01-2003.12 | 1.3L Patrol L13A1 PGM-FI (83 hp / 61 kW) Front - wheel drive (2WD). LHD |
| 1300cc. KG. 1.4S. L13A1. | 2003.01-2003.12 | 1.3L Patrol L13A1 PGM-FI (83 hp / 61 kW) Front - wheel drive (2WD). LHD |
| 1300cc. KG. 1.4LS. L13A1. | 2003.01-2003.12 | 1.3L Patrol L13A1 PGM-FI (83 hp / 61 kW) Front - wheel drive (2WD). LHD |
| 1300cc. KR. 1.4LS. L13A1. | 2003.01-2003.12 | 1.3L Patrol L13A1 PGM-FI (83 hp / 61 kW) Front - wheel drive (2WD). LHD |
| 1300cc. KG. 1.4S-W. L13A1. | 2003.01-2003.12 | 1.3L Patrol L13A1 PGM-FI (83 hp / 61 kW) Front - wheel drive (2WD). LHD |
| 1300cc. KR. 1.4ES. L13A1. | 2003.01-2003.12 | 1.3L Patrol L13A1 PGM-FI (83 hp / 61 kW) Front - wheel drive (2WD). LHD |
